Short SD-330-UTT
Aircraft of the Royal Thai Police
....

                  .

Development

Entwicklung




                  .

Variants

Versionen



SD-330-UTT





SD-330-UTT



                  .

Operational history

Einsatzgeschichte




.




Royal Thai Police

Royal Thai Police

Royal Thai Police

.
.

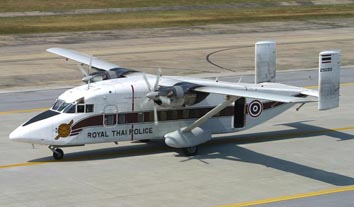

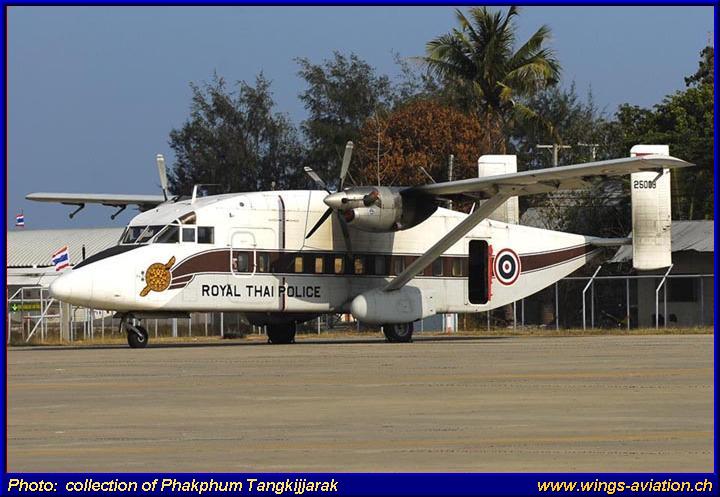

Short SD-330-UTT 25099 at Bamgkok (Photo courtesy of Boriboon Amratisha www.thaiaviation.net) Short SD-330-UTT 25099 at Bamgkok  (Photo courtesy of Tangkijjarak Phakphum).  (Photo courtesy of Tangkijjarak Phakphum).  (Photo courtesy of Tangkijjarak Phakphum). .
  .

 (Photo courtesy of Tangkijjarak Phakphum).

 (Photo courtesy of Tangkijjarak Phakphum).  (Photo courtesy of Tangkijjarak Phakphum).   .
.

Specifications SD-330-UTT

Wingspan

Spannweite

22.76 m

Length

Länge

17.69 m

Height

Höhe

4.95 m
Wing area Flügelfläche 42.10 m²

Engine

Motor

2× Pratt & Whitney Canada PT6A-45-R turboprop,
1,198 hp each

Maximum speed

Höchstgeschwindigkeit

241 mph

Empty weight

Leergewicht

6,680 kg

Loaded weight

Startgewicht

10,387 kg

Climb Rate

Steigrate

60 m/s

Service ceiling

Gipfelhöhe

6,400 m

Range

Reichweite

1,695 km

Armament

Bewaffnung

none

Capacity

Zuladung 30 passengers
.

Serial Short SD-330-UTT
Type

US Serial

Reg.

s/n

Delivered

Withdrawn

Remarks

SD-330-UTT - 25099 SH3099  26.9.1984 present -
SD-330-UTT - 25105 SH3105 23.3.1985 present -

-

last update 30. May 2013

written 1. January 2007

-

-
