Bell-Boeing V-22 Osprey

.
.
.

Contents

Inhalt

  Development     Entwicklung
  Variants     Versionen
  Operational history     Einsatzgeschichte
  Drawings / Markings     Zeichnungen / Markierungen
  Specifications     Technische Daten
  Serials     Seriennummern
..

Development

Entwicklung

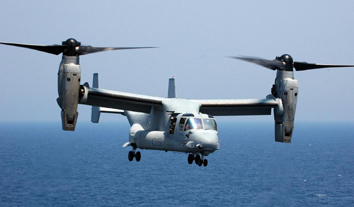

The Osprey is the world's first production tiltrotor aircraft, with two three-bladed proprotor, turboprop engine, and transmission nacelle mounted on each wingtip. For takeoff and landing, it typically operates as a helicopter with the nacelles vertical and rotors horizontal. Once airborne, the nacelles rotate forward 90° in as little as 12 seconds for horizontal flight, converting the V-22 to a more fuel-efficient, higher-speed turboprop airplane.



.

Variants

Versionen

MV-22B

Basic U.S. Marine Corps transport-version.

MV-22B



.

Operational history

Einsatzgeschichte

The US Marine Corps began crew training for the Osprey in 2000, and fielded it in 2007; it is supplementing and will eventually replace their CH-46 Sea Knights.



.

Drawings

Zeichnungen

..

..




-


.

Specifications

Technische Daten

Specifications

MV-22B

Rotor diameter

Rotordurchmesser

11.60 m

Length

Länge

17.50 m

Wingspan

Spannweite

14.00 m

Height

Höhe

5.50 m

Wing area

Flügelfläche

28.00 m²

Engine

Motor

2× Rolls-Royce Allison T406/AE 1107C-Liberty turboshafts, 6,150 hp each

Maximum speed

Höchstgeschwindigkeit

565 km/h

Empty weight

Leergewicht

15,032 kg

Loaded weight

Startgewicht

27,400 kg

Climb Rate

Steigrate

11.8 m/s

Service ceiling

Gipfelhöhe

7,925 m

Range

Reichweite

1,627 km

Armament

Bewaffnung

2× 7.62 mm machine gun

Capacity

Zuladung

32 troops

.

Serials

Seriennummern

Bell-Boeing MV-22B Osprey
MV-22B 163911 - 163916  6
MV-22B 166685 - 166692 8
MV-22B -

?

MV-22B -

?

MV-22B -

?

MV-22B -

?

Total

?
