Fairey Firefly

  ..

Contents

Inhalt

  Operational history     Einsatzgeschichte
  Drawings     Zeichnungen
  Specifications     Technische Daten
  Serials     Seriennummern
  Pictures     Bilder
  ..

Operational history

Einsatzgeschichte

1947

1947

Drawings

Zeichnungen








723 NAS

724 NAS

725 NAS


  805 NAS 816 NAS 816 NAS




816 NAS 816 NAS 816 NAS

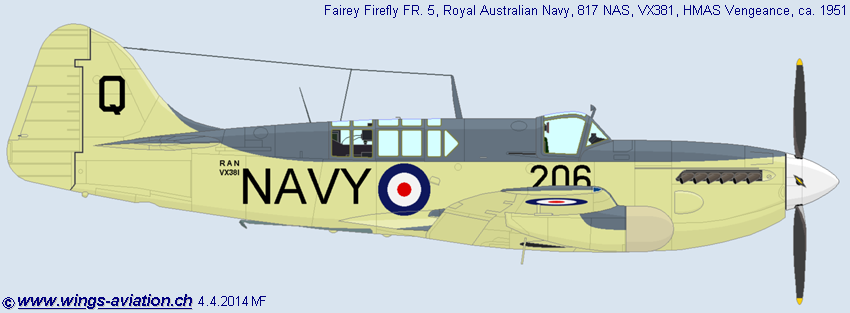

817 NAS

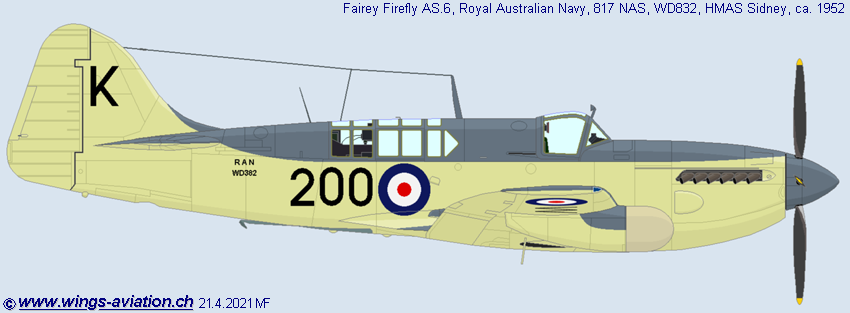

817 NAS

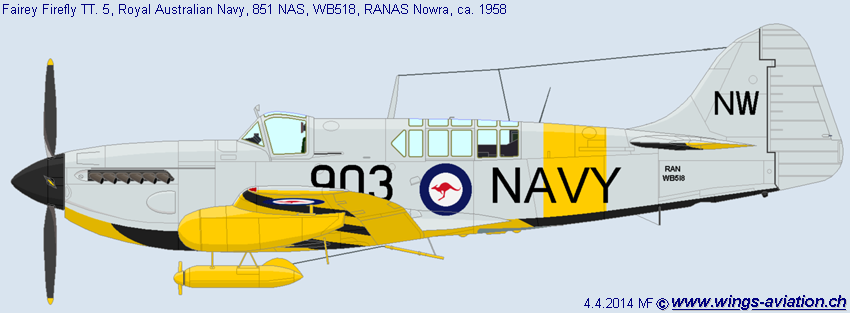

851 NAS

All drawings by Michael E. Fader
-

Specifications

Technische Daten

Specifications

AS-4

Wingspan

Spannweite

12.55 m

Length

Länge

11.8 m

Height

Höhe

4.37 m
Wing area Flügelfläche 30.66 m²

Engine

Motor

1 × Rolls-Royce Griffon 74 liquid-cooled V12 engine, 2,245 hp

Maximum speed

Höchstgeschwindigkeit

618 km/h

Empty weight

Leergewicht

4,472 kg

Loaded weight

Startgewicht

6,000 kg

Climb Rate

Steigrate

9.7 m/s

Service ceiling

Gipfelhöhe

9,723 m

Range

Reichweite

1,722 km

Armament

Bewaffnung

4 × 20 mm cannons
up to 900 Kg of Bombs
...

Serials

Seriennummern

Westland Scout
Type s/n RAN Serial Buzz Sqn. Base Delivered Withsrawn Remarks
FR.1 F.7620 MB696 212 817 NAS RNAS St Merryn 7. 5.1950 1. 9.1950 returned to RN
FR.4 F.6078 TW726 228 816 NAS RNAS Eglinton 17. 7.1948 24.3.1949 returned to RN
FR.4 F.6083 TW730 231 816 NAS RNAS Eglinton 28.8.1948 24.3.1949 returned to RN
FR.4 F.6108 TW737 227 816 NAS RNAS Eglinton 12.1948 24.3.1949 returned to RN
FR.4 F.6110 TW739 232 816 NAS RNAS Eglinton 17. 7.1948 24.3.1949 returned to RN
FR.4 F.6111 TW740 2?? 816 NAS RNAS Eglinton 28.8.1948 24.3.1949 returned to RN
FR.4 F.6113 TW742 233 816 NAS RNAS Eglinton 28.8.1948 24.3.1949 returned to RN
FR.4 F.7432 TW748 2?? 816 NAS RNAS Eglinton 28.8.1948 24.3.1949 returned to RN
FR.4 F.7433 TW749 236 816 NAS RNAS Eglinton 17. 7.1948 24.3.1949 returned to RN
FR.4 F.7993 VG973 235 816 NAS RNAS Eglinton 17. 7.1948 15.3.1949 Crashed
FR.4 F.8006 VG986 2?? 816 NAS RNAS Eglinton 28.8.1948 24.3.1949 returned to RN
FR.4 F.8009 VG989 2?? 816 NAS RNAS Eglinton 28.8.1948 7.11.1949 -
FR.4 F.8010 VG990 2?? 816 NAS RNAS Eglinton 28.8.1948 7.1949 returned to RN
FR.4 F.8018 VG998 238 816 NAS RNAS Eglinton 28.8.1948 8. 2.1949 Crashed
FR.4 F.8021 VH122 227 816 NAS RNAS Eglinton 27.8.1948 27. 8.1958 returned to RN
FR.4 F.8032 VH133 227 816 NAS RNAS Eglinton 17. 7.1948 24.3.1949 returned to RN
FR.5 F.8275 VT365 2?? 817 NAS RNAS St Merryn 7.1950 1.1951 returned to RN
FR.5




-

Pictures

Bilder




-

last update 11. January 2013

written 1. November 2010

-

-
