Training Frigate
Ships of the Royal Thai Navy
Makut Rajakumarn class, Training Frigate
| Displacement: |
1'65 tons standard, 1,900 tons full load |
||||
| Dimensions: |
97.56 x 10.97 x 5.5 m (320 x 36 x 18 feet) |
||||
| Propulsion: |
1 cruise diesel, 6,000 bhp, 18 knots; 1 TBM-3B boost gas turbine, 23,125 shp, 26 knots |
||||
| Speed: | 26 kts | Shaft: | 2 shafts | ||
| Crew: |
140 |
Range: | |||
| Radar: |
DA-05 air/surf search |
Sonar: |
DSQS-21C hull |
||
| EW: |
UA-3 intercept, FH-4 HFDF |
Fire Control: |
WM-22 |
||
| Armament: |
2 x 114mm/56 DP 2 x 40mm/70 AA Bofors 2 x triple 12.75 inch torpedo tubes 2 x DC mortars 1 x DC rack |
||||
| Builder: |
Built in UK |
||||
| Design: | Yarrow Type | ||||
| Ships: | FF-433 HTMS Makut Rajakumarn | ||||

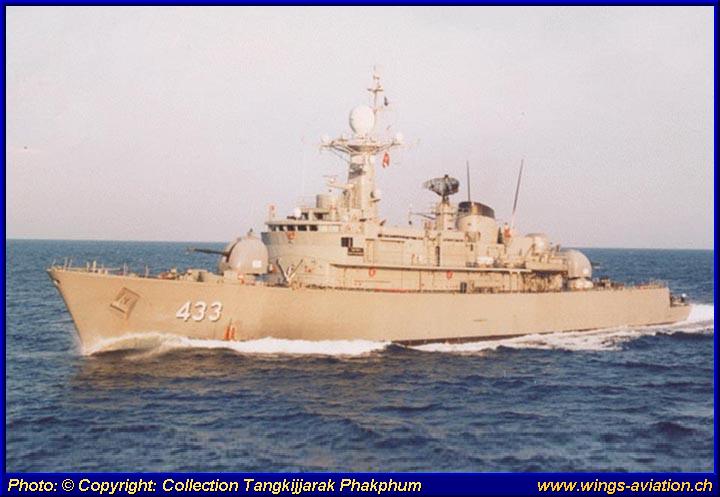

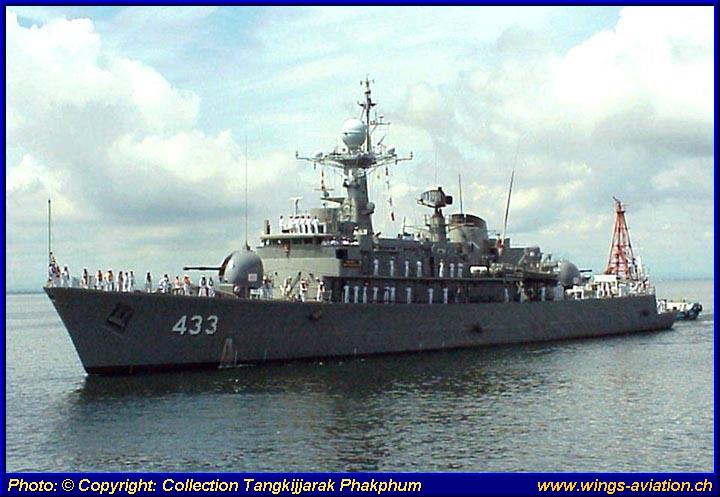

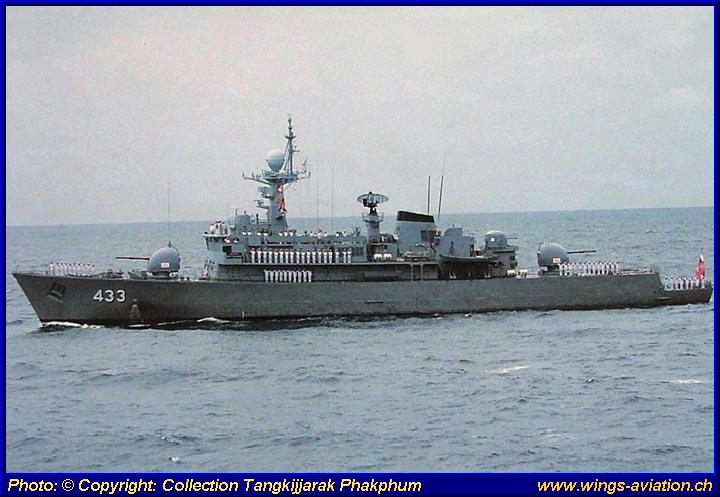

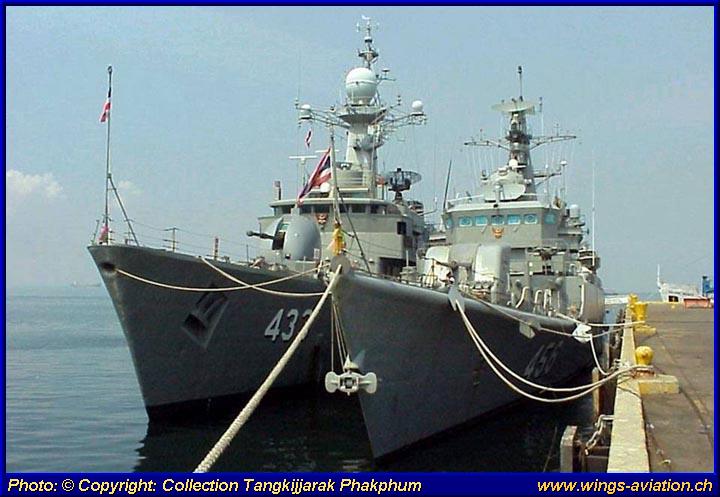

FF-433 HTMS Makut Rajakumarn
| Laid down: | 11. January 1971 | |
| Launched: | 18. November 1971 | |
| Commissioned RTN | 7. May 1973 | |
| Decommissioned RTN | today | |
Pictures / Bilder
