De Havilland D.H.106 Comet
Aircaft in Detail
Entwicklung
The de Havilland DH 106 Comet was the world's first commercial jetliner. Developed and manufactured by de Havilland at its Hatfield Aerodrome, Hertfordshire, United Kingdom headquarters, the Comet 1 prototype first flew on 27 July 1949. It featured an aerodynamically clean design with four de Havilland Ghost turbojet engines buried in the wings, a pressurised fuselage, and large square windows. For the era, it offered a relatively quiet, comfortable passenger cabin and showed signs of being a commercial success at its 1952 debut.
Der de Havilland DH 106 Comet war der weltweit erste kommerzielle Jetliner. Entwickelt und hergestellt von de Havilland an seinem Hatfield Aerodrome, Hertfordshire, Großbritannien Hauptsitz, der Comet 1 Prototyp flog erstmals am 27. Juli 1949. Es zeigte ein aerodynamisch sauberes Design mit vier de Havilland Ghost Turbojet-Motoren in den Flügelwurzeln, ein unter Druck stehender Rumpf, Und grosse quadratische Fenster. Für die Ära bot es eine relativ ruhige, bequeme Passagierkabine und zeigte Anzeichen für einen kommerziellen Erfolg bei seinem Debüt 1952.
Versionen

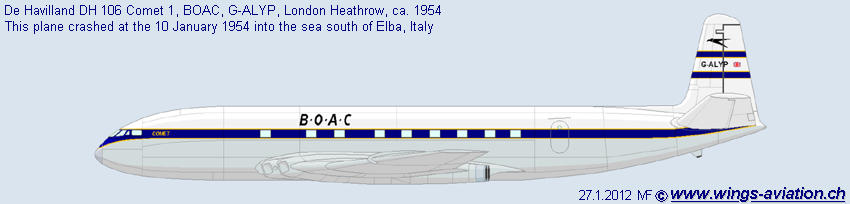

Comet 1
The first model produced, a total of 12 aircraft in service
Comet 1
Das erste produzierte Modell, insgesamt 12 Flugzeuge im Einsatz.
Comet 1A
Version with higher-allowed weight, greater fuel capacity
Comet 1A
Version mit höherem zulässigen Gewicht und grösserer Treibstoffkapazität.
Comet 1X
Two RCAF Comet 1As were rebuilt with heavier-gauge skins to a Comet 2 standard
Comet 1X
Zwei RCAF Comet 1A wurden mit einer dickeren Außenhaut nach Comet-2-Standard umgebaut.
Comet 1XB
Four Comet 1As were upgraded to a 1XB standard with a reinforced fuselage structure and oval windows.
Comet 1XB
Vier Comet 1A wurden auf den 1XB-Standard mit verstärkter Rumpfstruktur und ovalen Fenstern aufgerüstet.
Comet 2
Version with slightly larger wing, higher fuel capacity and more-powerful Rolls-Royce Avon engine, its fuselage was 94 cm longer
Comet 2
Version mit etwas grösseren Tragflächen, höherer Treibstoff-kapazität und leistungsstärkerem Rolls-Royce Avon-Triebwerk, deren Rumpf 94 cm länger war
Comet 2X
Version powered by four Rolls-Royce Avon 502 turbojet engines
Comet 2X
Version angetrieben von vier Rolls-Royce Avon 502-Turbostrahltrieb-werken
Comet 2E
Two Comet 2 airliners were fitted with Avon 504s in the inner nacelles and Avon 524s in the outer ones.
Comet 2E
T.2
Two Comet 2 for the RAF were fitted out as crew trainers
T.2
C.2
Eight Comet 2s originally destined for the civil market were completed for the RAF
C.2
2R
Three Comet 2s were modified for use in radar and electronic systems developmen
2R
Comet 3
Lengthened Version 4.70 m and powered by Avon M502 engines developing 10,000 lbf The variant added wing pinion tanks, and offered greater capacity and range.
Comet 3
Comet 3B
Flying testbed, modified with Avon RA29 engines
Comet 3B

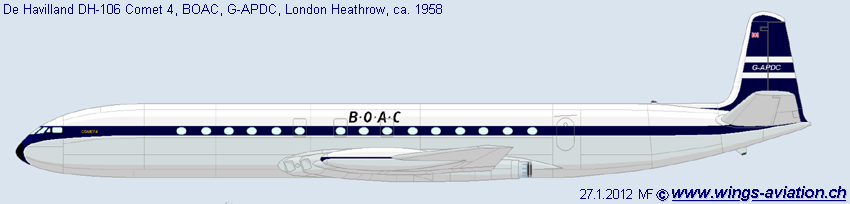

Comet 4
Stretched Comet 3 with even greater fuel capacity. The design had progressed significantly from the original Comet 1, growing by 5.64 m and typically seating 74 to 81 passengers
Comet 4

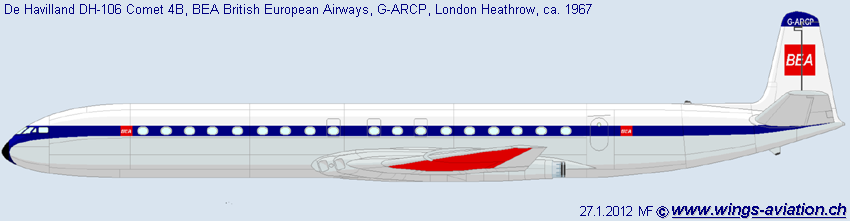

Comet 4B
Featured greater capacity through a 2.00 m longer fuselage, and a shorter wingspan
Comet 4B
Comet 4C
:This variant featured the Comet 4's wings and the 4B's longer fuselage;
Comet 4C
Profiles
Profile
| Specifications | Comet 2 | |
|
Wingspan |
Spannweite |
35.00 m |
|
Length |
Länge |
29.29 m |
|
Height |
Höhe |
8.99 m |
| Wing area | Flügelfläche |
187.20 m2 |
|
Engine |
Motor |
4 x Rolls-Royce Avon Mk 503/504 turbojets: 7,000 lbf each |
|
Maximum speed |
Höchstgeschwindigkeit |
790 km/h |
|
Empty weight |
Leergewicht |
? |
|
Loaded weight |
Startgewicht |
54,000 kg |
|
Climb Rate |
Steigrate |
? |
|
Service ceiling |
Gipfelhöhe |
13,000 m |
|
Range |
Reichweite |
4,200 |
|
Armament |
Bewaffnung |
none |
|
Capacity |
Zuladung |
44 passengers |
